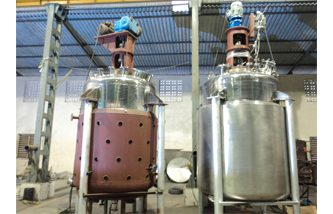

The reactors are available in simple plain, Jacketed & Limpet coil constructions. They are equipped with or without agitator/stirrers & is manufactured on tailor made basis as per the customers requirement.
The reaction vessel consists of a cylindrical shell with leg or lug supports with standard torospherical dishends at both ends. Limpet coils are half round pipes welded on the outer surface of the shell & also on the bottom dish of the reactor. It is either Double end double start for both heating & cooling through limpet coil OR Normal Single coil for either heatign or cooling.
The equipments are manufactured as per ASME standards & are tested hydraulically as per the design pressure.
|MATERIAL OF CONSTRUCTION||SS-304 / SS-316 or MS|
|CAPACITY AVAILABLE||From 0.10 to 70 KL|
